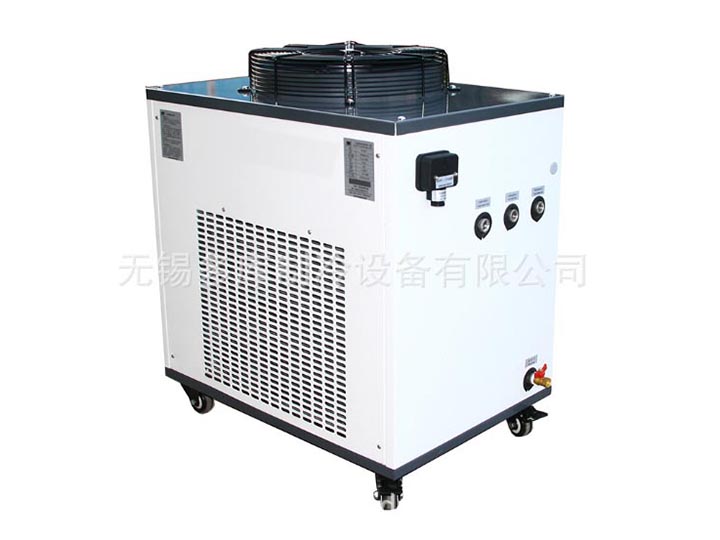

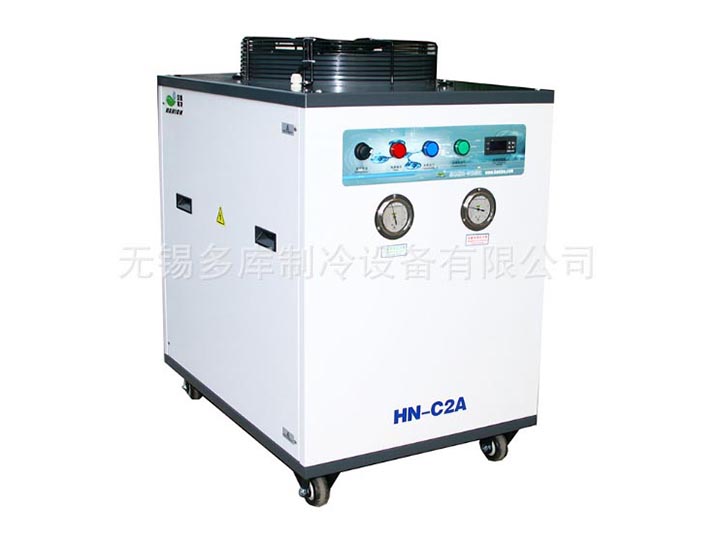

2P Industrial Air Cooled Water Chiller
-
1/2
-
2/2
Performance
The housing of the chiller is designed with the three-dimensional sheet-metal software Solidworks and processed by the imported precision-numerical-control sheet-metal equipment, and the shell surface is well treated with the environmental electrostatic powder coating, which makes the chiller be elegant and durable. The condenser adopts the thickened corrugated window-opening aluminum fin with copper tubing, which makes high efficiency on heat exchange, environmental and power-saving.
Built-in high and low voltage, overload, delay, flow and other multiple protection devices ensure the equipment operation more stable. The world famous brand compressors (Panasonic, Daikin, Copeland) and refrigeration electronic control components (Danfoss, Emerson, Siemens, etc.) are selected for the equipments. The general model control accuracy is ±1℃ and the special model can reach ±0.5℃.
Multiple refrigeration circuits can be set up and each circuit can run separately, which meets the demand of variable load, favours power saving, improves the safety and stability of equipment operation, and satisfies the severe requirements for temperature in various industrial production. The normal temperature model is 5-25℃ and the low temperature model is from -25℃ to -5℃. Non-standard models can be customized based on customers’ requirements.

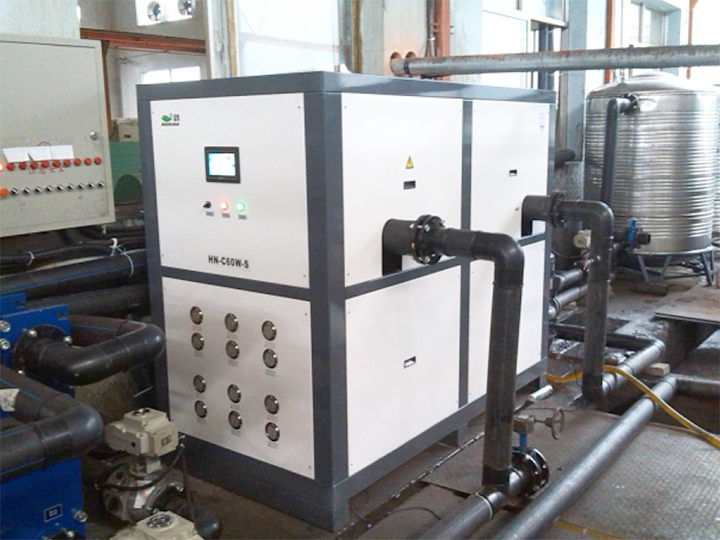

Application
Application
The air cooled chillers are widely used in injection mold, laser marking welding equipment, vacuum coating machine, packaging machinery, semiconductor equipment, welding machine electrode, plasma cutting machine, spindle cooling of PCB drilling machine, etc. to protect the precision equipments and improve production efficiency.
Product Configuration
| Model Item | DC-C1A | DC-C2A | DC-C3A | DC-C5A | DC-C8A-D | DC-C10A-D | DC-C12A-D | DC-C15A-T | DC-C20A-F | DC-C25A-D | DC-C30A-T | |
| Horsepower | HP | 1 | 2 | 3 | 5 | 8 | 10 | 12 | 15 | 20 | 25 | 30 |
|
Refrigerating Capacity |
kcal/h | 2390 | 4730 | 7181 | 12900 | 20640 | 26660 | 28810 | 38700 | 53320 | 65360 | 79980 |
| KW | 2.78 | 5.5 | 8.35 | 15 | 24 | 31 | 33.5 | 45 | 62 | 76 | 93 | |
|
Temperature Control Range℃ |
5-25℃ | |||||||||||
| Power Supply | 220V 50HZ 1PH | 380V 50HZ 3PH | ||||||||||
|
Compressor Power(kw) |
0.83 | 1.7 | 2.5 | 4 | 3*2 | 4*2 | 4.6*2 | 4*3 | 4*4 | 10*2 | 8*3 | |
| Refrigerant | R22 ( Environmental Refrigerant R407 and R410 are optional ) | |||||||||||
| Condensor | Type |
Air cooled condenser（corrugated open-window aluminum foil radiating fin with copper tube inside，20% increase in heat dissipation efficiency） |
||||||||||
| Fan | Type | Large-flow and Low-Noise Axial Fan Motor | ||||||||||
|
Evaporator |
Type | Coil evaporator inside water tank（stainless steel plate heat exchanger or shell tube dry evaporator are optional） | ||||||||||
|
Water tank volume |
20 | 35 | 50 | 62 | 125 | 125 | 130 | 240 | 300 | 350 | 400 | |
|
Chilling water pump |
Power KW | 0.37 | 0.37 | 0.37 | 0.37 | 0.75 | 0.75 | 0.75 | 1.5 | 1.5 | 2.2 | 2.2 |
| Chilling water flow | 0.6-0.8 | 0.9-1.3 | 1.3-1.8 | 2.6-3.5 | 4.2-5 | 5.1-6 | 6-6.8 | 7.5-9 | 10-12 | 11-13 | 15-18 | |
|
Chilling Water Inlet/outlet Caliber (inch) |
1/2" | 1/2" | 1/2" | 1" | 1-1/2" | 1-1/2" | 1-1/2" | 2" | 2" | 2-1/2" | 2-1/2" | |
| Dimensions | Length mm | 605 | 775 | 925 | 1155 | 1250 | 1250 | 1250 | 1800 | 1860 | 1860 | 2100 |
| Width mm | 485 | 555 | 575 | 655 | 755 | 755 | 755 | 1050 | 1100 | 1100 | 1250 | |
| Height mm | 876 | 908 | 1012 | 1082 | 1550 | 1550 | 1550 | 1750 | 1930 | 1930 | 2150 | |
| Safety Protection | Delay protection, flow protection, compressor overheating protection, refrigerant high and low pressure protection, overcurrent protection, phase sequence / phase deficiency protection, overload protection, overtemperature protection, etc. | |||||||||||
Technical Specifications:
1. Model number specification: e.g. DC-C10A-D, “DC” indicates Doco company code, “C” indicates chiller, “10” indicates 10 horsepower, “A” indicates air cooled chiller, “D” indicates dual system with two compressors, “T” indicates three compressors, “F” indicates four compressors.
2. *Compressor power: *2indicates two compressors working and two independent refrigerating systems.
3. Refrigerating capacity parameter basis: the temperature of inlet and outlet chilled water is 12℃ / 7℃ and the temperature of inlet and outlet cooling air is 30 ℃ / 35℃.
4. Working ranges: the temperature range of chilling water is from 5℃ to 35℃, the temperature difference between inlet and outlet chilling water is from 3℃ to 8℃, the ambient temperature can not be higher than 40℃, and the high-temperature model should be selected when the ambient temperature is higher than 40℃.
5. We reserve the right to revise the above information without prior notice.
The applications
 The Application of Chillers in Vacuum Casting Equipment |
 The Application of Chillers in Vacuum Casting Equipment |
The Application of Chillers in Bearing Steel Ball Industry
|
The Application of Chillers in Chemical Reactor Equipment
|
